AWS VPC Gateway S3 endpoints for LucidLink

  • Updated







Summary

Data and media asset managers often need to transfer files efficiently and securely between different locations. Examples include moving data between two LucidLink filespaces or transferring data from an S3 bucket to a LucidLink filespace. To maximize network performance and avoid unnecessary cloud egress and network service costs in these scenarios, it’s beneficial to use AWS VPC Gateway Endpoints for S3 to prevent routing data through public internet gateways. Additionally, VPC Gateway Endpoints allow you to privately connect your Virtual Private Cloud (VPC) to Amazon S3 buckets without exposing your traffic to the public internet.

This article explores the benefits of using AWS VPC Gateway Endpoints for S3, discusses various migration scenarios, key considerations, infrastructure examples, and outlines the process for implementation.


We will cover:

  1. Benefits of using AWS VPC Gateway Endpoints for S3
  2. Common migration scenarios
  3. Requirements and setup process
  4. Step-by-step implementation guide
  5. Best practices and optimization tips

Benefits of Using AWS VPC Gateway Endpoint for S3

1. Enhanced Security

  • Private Connectivity: Keeps your data within the AWS network, reducing exposure to internet-based threats
  • No Public IP Required: Eliminates the need for public IP addresses for your instances to access S3

2. Reduced Data Transfer Costs

  • No NAT Gateway Charges: Eliminates the need for NAT gateways or instances, reducing associated costs
  • Free Intra-Region Data Transfer: Data transfer between EC2 and S3 in the same region is often free

3. Improved Performance

  • Lower Latency: Data transfers occur over the high-speed AWS network backbone
  • Higher Throughput: Benefit from AWS's robust infrastructure for faster data transfer

4. Simplified Network Configuration

  • Easier Management: Simplifies your network setup by removing the need for internet gateways or complex firewall rules
  • Endpoint Policies: Allows for granular access control to S3 resources using VPC endpoint policies

Common Migration Scenarios

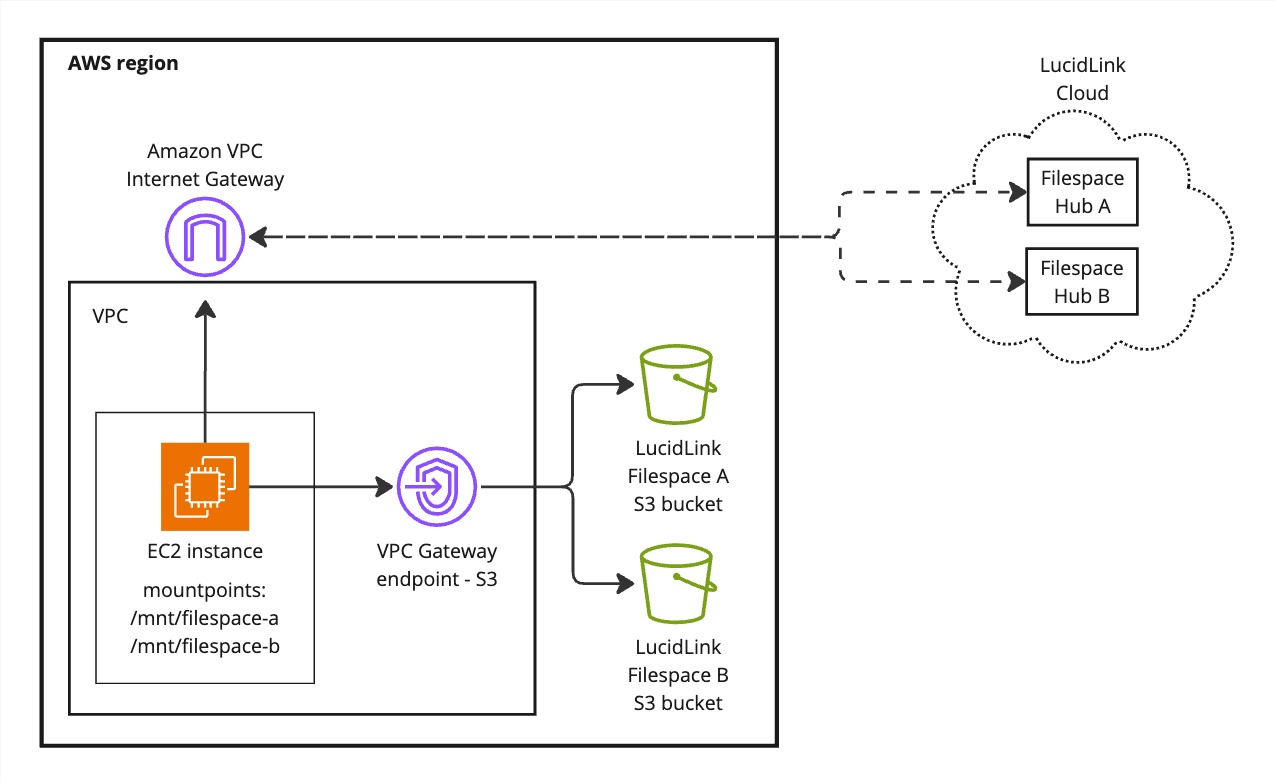

1. Migration from a LucidLink Custom (AWS) Filespace to a LucidLink AWS Filespace

Moving data between AWS accounts can be complex. Using VPC Gateway Endpoints streamlines this process by keeping data transfer within AWS's secure network.
AWS VPC Gateway for S3 endpoints - AWS example.jpg

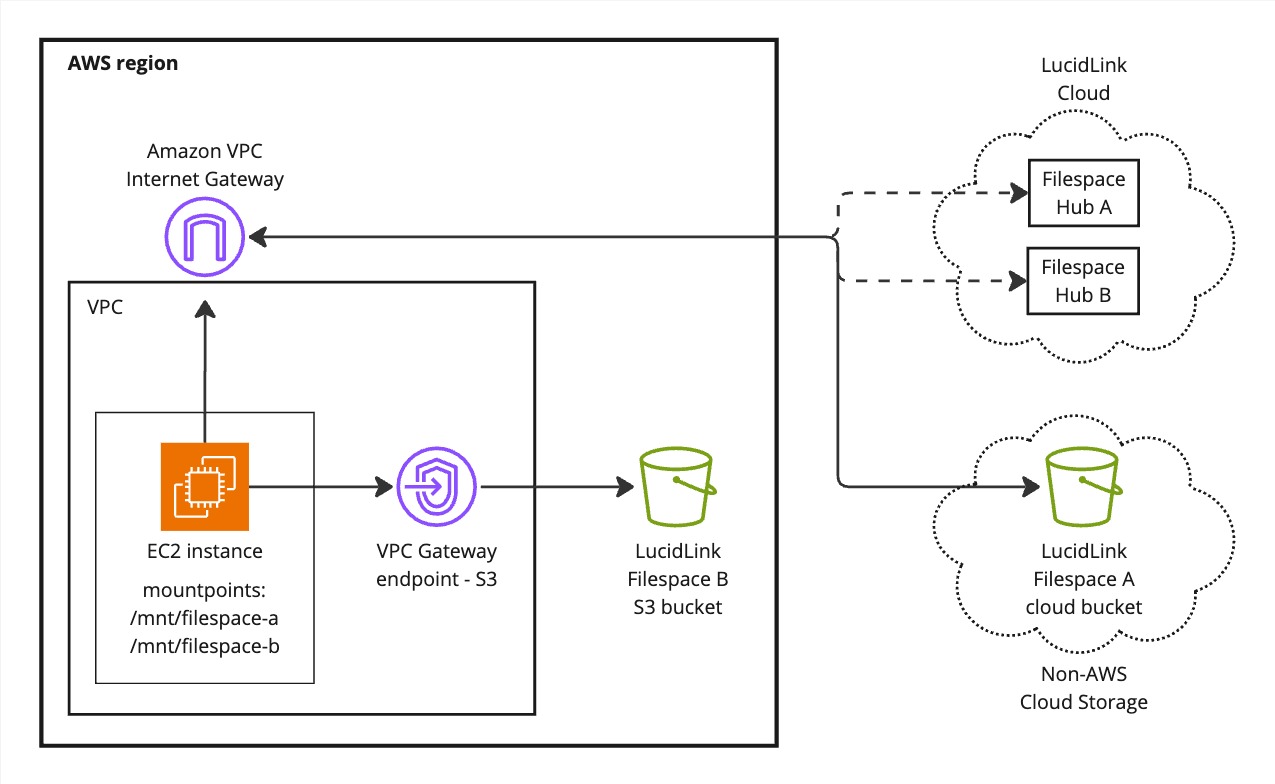

2. Migration from a non-AWS Filespace to a LucidLink AWS Filespace

Data transfers from a non-AWS S3 filespace (e.g., IBM) to an AWS filespace require careful planning to minimize costs and maximize efficiency. Leveraging AWS VPC Gateway endpoints can facilitate a smooth migration and reduce costs. AWS compute instances require a VPC Internet Gateway to access non-AWS cloud storage on public Internet endpoints; however, Gateway endpoints remain advantageous for any AWS S3 data transfers.

AWS VPC Gateway for S3 endpoints - Multi-cloud example.jpg

Requirements

  • AWS Account
    • Access to AWS Services with necessary permissions to create and manage resources
  • LucidLink Source and Destination User Account Credentials
    • Valid credentials for accessing both the source and destination filespaces
  • Virtual Private Cloud (VPC)
    • A VPC to securely run your EC2 instances
  • VPC Gateway Endpoint for S3
    • An endpoint to connect your VPC privately to S3
  • Data Moving Utility Software
    • AWS CLI, rsync, or other copy/sync software installed on your EC2 instances

Setting Up AWS VPC Gateway Endpoint for S3

Step-by-Step Guide

1. Create or Select a VPC

  • New VPC: Create a new VPC in the same region as your source and destination S3 buckets
  • Existing VPC: Alternatively, use an existing VPC if it meets the requirements

2. Launch EC2 Instances

  • Instance Selection: Choose instance types based on performance needs. The C6a.2xlarge instance type offers a good balance of vCPU, RAM, and networking specs for data transfer jobs
  • Security Groups: Configure security groups to allow necessary inbound and outbound traffic

3. Create a Gateway Endpoint

To create a gateway endpoint using the console:

  1. Open the Amazon VPC console at https://console.aws.amazon.com/vpc/
  2. Confirm the correct region is selected (where your VPC and EC2 are located)
  3. In the navigation pane, choose Endpoints
  4. Choose Create endpoint
  5. For Service category, choose AWS services
  6. For Services, add the filter Type = Gateway and select com.amazonaws.[region].s3
  7. For VPC, select your VPC
  8. For Route tables, select the route tables for the endpoint
  9. For Policy, select either Full access or Custom to attach a VPC endpoint policy
  10. Optionally add tags
  11. Choose Create endpoint

4. Update Security Groups and Network ACLs

  • Outbound Rules: Allow traffic to S3 and LucidLink filespace service endpoints
  • Inbound Rules: Configure according to your application's requirements

Data Migration Process

1. Prepare Your Data Moving Utility

  • Install Tools: Set up AWS CLI or other copy/sync software on your EC2 instances
  • Credentials: Ensure IAM credentials are correctly configured for accessing S3 and LucidLink filespaces

2. Monitor and Validate

  • Logging: Enable logging to monitor progress and identify any issues
  • Performance Metrics: Use Amazon CloudWatch to track throughput and latency
  • Data Integrity: Verify data integrity after transfer using checksums or hash comparisons

Optimization Tips

  • Multi-threading: Increase the number of processing threads to improve transfer speeds
  • Parallelize Workflow: Distribute data transfers across multiple EC2 instances for large transfers
  • Network Performance: Choose EC2 instances with enhanced networking capabilities

For assistance or more information, please contact our support team or refer to AWS's official documentation.
